SLIDING PERGOLA QUATTRO

Pergola Quattro with a sliding roof features clean modern lines with a minimalistic geometric look and represents the newest product of Suntech in the current outdoor living collection. The sliding roof may be closed and an open space of up to 83% of the overall pergola size may be created.

Quattro also represents the first lighting that is integrated in the textile layer and there are 3 types of this lighting: RGB LED - Hidden Stripe lighting for a colour change, LED Stripe Dimmer lighting on the sides of the structure perimeter to ensure intensity or lighting HDD Lux High Power LED integrated in the fabric.

The individual modules may be adjusted to the depth of up to 5.5 m and length of 8 m with use of flexible installation options, such as integration in the existing structures, mounting to the wall or free standing for bigger outdoor areas.

SUN SYSTEM, s.r.o. is a certified business partner of the manufacturer, SUNTECH, for the Czech and Slovak Republic and Austria.

Full product description

REQUEST A QUOTE


Do you want to see how this pergola would look like in your garden or terrace? Try our app. Download:

Stahujte naši aplikaci z App Store Stahujte naši aplikaci z Google Play

Popis produktu

BASIC DESCRIPTION OF THE FOLDING PERGOLA STRUCTURE

The folding pergola is made of extruded aluminium profiles of the highest quality that are treated with a powder colour and a folding roof made of 3-layer PVC. The most important part of the pergola includes transverse beams sized 252 x 82 mm. Another indispensable part comprises aluminium pergola webs sized 160 x 160 mm.

COLOURS OF ALUMINIUM STRUCTURES AND SLIDING FABRICS

The entire aluminium pergola structure is treated with a powder colour made by Pulver. The basic colours without surcharge include the “Basic colours” comprising 6 colours (RAL9016, RAL1013, RAL9006, RAL7006, RAL7016 and RAL9005). These colours are painted in the smooth - glossy version. Another colour of the “Xclusive colours” collection that is without any surcharge and belongs among the most favourite ones is ON617. For a surcharge, you may also choose from the extensive collection “Exclusive colours and Texture colours” or any other colour from the RAL collection.

The folding roof of the aluminium pergola is made of 3-layer PVC fabric produced by a German manufacturer. As concerns the base version, you may choose from the Collection of fabrics “Basic, Xclusive and Matt” that comprise 7 fabrics indicated as “blackout”, i.e. non-transparent. For a surcharge, you may choose a fabric that is transparent, but keeps the airtight properties of the basic fabrics. A disadvantage of these fabrics indicated as “Transparent” includes visibility of impurities on the upper side of the fabric.

RAINWATER DRAINAGE INSIDE THE PERGOLA

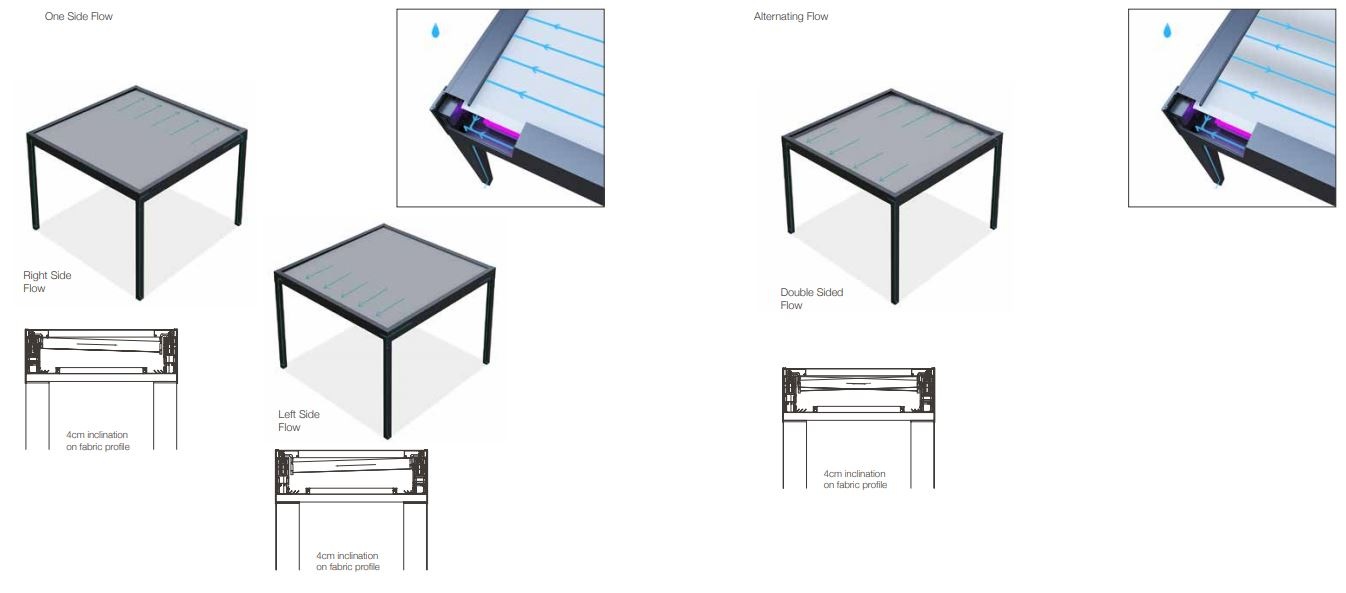

The folding fabric has an invisible bilateral slope (40 mm) allowing for one-sided or alternative water flow over the rafters. Water is drained through the drain profile to a hole that is drilled at the web site. The water drain is visible (free) and ensured by means of a drain feet. So the space under the pergola will always be perfectly dry.

SCREEN ROLLER BLINDS FOR PERGOLAS WITH A FOLDING ROOF

Screen roller blinds serve as a protection against various weather conditions (sun, wind or rain) and also to protect privacy under the pergola. Screen roller blinds are equipped with an extruded box with different sizes depending on the dimension (width). The dimensions of the guide profile that is fixed with use of stainless steel screws in the pergola web are 46 x 32 mm. A PVC insert is located inside the profile that is a part of the so-called ZIP system. We will adjust the colour of the aluminium profiles to the entire pergola structure.

TECHNICAL FABRIC OF SCREEN ROLLER BLINDS

The fabric of roller blinds comprises glass or polyester fibres with a coating layer of PVC from the leading European manufacturers Sergé Ferrari and Copaco. The fabric edges are equipped with a “zipper” that is located in a guide profile. Thanks to this ZIP system the screen roller blinds resist up to 72 km/h (20 m/s) of gust wind. The most striking feature of screen roller blinds includes maintaining of the contact with the environment when looking through the fabric at daylight. To the contrary, the fabric is fully transparent upon the night lighting located under the pergola (so it does not protect your privacy at night). The technical fabric of screen roller blinds is fully maintenance-free.

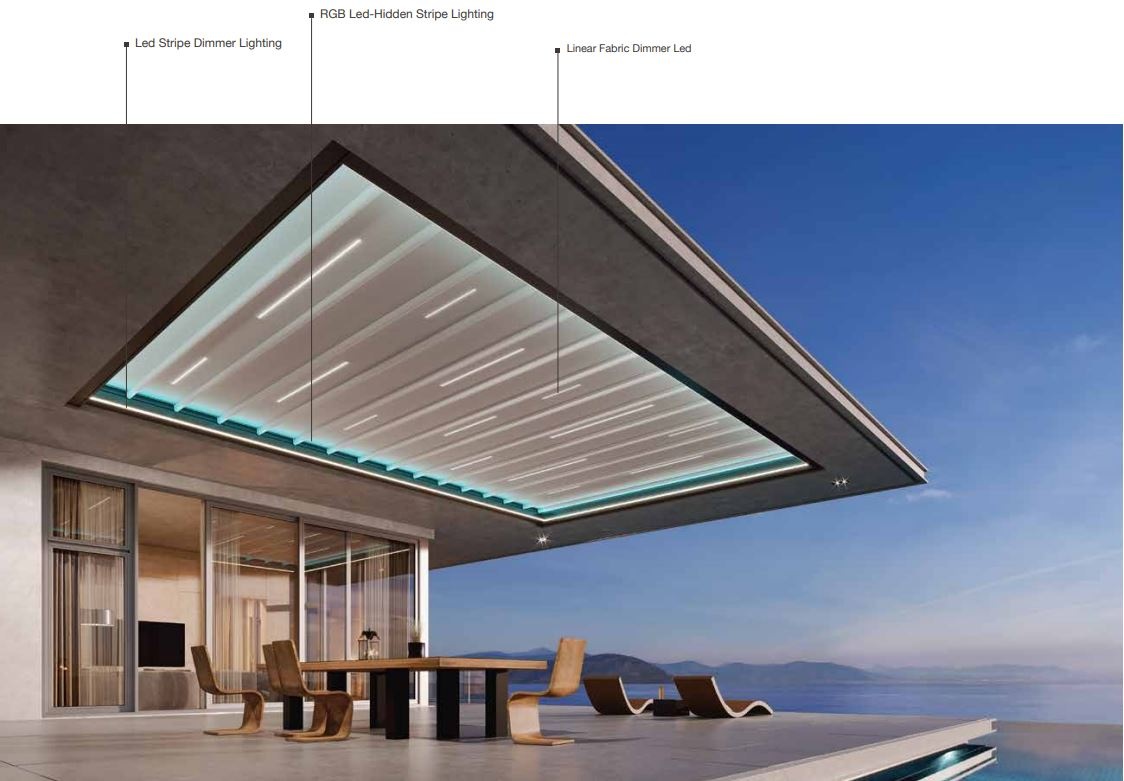

LED LIGHTING AND HEATING OF THE PERGOLA SPACE

  • Stripe Dimmer Lighting creates a nice atmosphere. Dimmable soft Led Stripe lighting on the sides inside the structure ensure the intensity of daylight (120 LEDs/m l 2,800 K) or a cold white light (60 LEDs/m l 5,100 K).
  • RGB Led-Hidden Stripe Lighting creates a luxurious atmosphere with infinite colour options (60 LEDs/m).
  • As the first product worldwide, Linear Fabric Dimmer LED features integrated lighting profiles on the fabric that ensure sufficient surrounding light in the evening. This patented lighting system may be supplied in a symmetrical or asymmetrical version (cold white light 120 LEDs/m I 6,000 K).

Wall electrical heat lamps of various power outputs that we supply in different colours and with interesting accessories serve to heat the pergola space. Heat lamps are supplied with the efficiency from 1,500 W to 2,500 W and the radiation intensity may be set on the remote control device at 0%, 33%, 66% and 100%.

SLIDING PERGOLA OPERATION AND ACCESSORIES

The aluminium pergola may only be operated electronically with use of a specially located tube drive SOMFY with an in-built radio receiver. We supply the control systems from SOMFY (a French company; products with a 5-year guarantee). The pergola is operated with use of a portable remote control device that is supplied in several versions - various numbers of control channels, possibility of scenarios or operation in a certain time. The control system accessories include various types of sensors reacting to weather changes - sun, wind and rain. When using the Connexoon or Tahoma system, you may operate the pergola by means of a smartphone, tablet or computer.

PROFESSIONAL ASSEMBLY OF A SLIDING PERGOLA

Professional assembly of folding pergolas ensures long life of your product, safe operation and many other benefits. The pergola is installed by 2-3 assembly technicians who were trained by the supplier. For better handling upon installation we use special assembly equipment that is fit for assembly and will ensure a better manipulation with the roll-on and reduce the probability of its damaging. The installation takes approximately 1-2 days depending on the conditions, building preparedness and accessories.

The sliding pergola is always anchored to the house wall or ceiling or may be constructed as free-standing. In the case of mounting on the wall or ceiling, it is important to check the heating parameters and the composition of the entire house wall (insulation thickness, insulation material, wall thickness, the masonry material, etc.). If it concerns installation in an uninsulated façade, we use threaded rods with a certified chemical mortar. In the case that the masonry is insulated, we use the Fischer Thermax anchor screws in combination with a certified chemical mortar. We custom-tailor every project, and therefore we are able to ensure auxiliary consoles and profiles for successful and secure anchoring.

Firm anchoring of the pergola webs in the front part is important. If it concerns installation on a concrete base plate or a concrete foot, we use screws for concrete or threaded rods in combination with a certified chemical mortar. Provided that the customer does not have a possibility to build concrete feet, we perform the installation with use of screw piles.

DELIVERY DEADLINE GUARANTEE OF A ROBUST SLIDING PERGOLA

The delivery deadline for this aluminium pergola is 8 weeks. Depending on the design, colour, accessories and special requirements it may be extended. The delivery deadline may affect the current production load and installation capacities (you will be notified of such fact upon consultancy and measuring).

The guarantee period provided by the manufacturer is 5 years and applies to the pergola, including the SOMFY electric drive. The guarantee is only applicable provided that the product is used and maintained in accordance with the instructions included in the user manual.

MAINTENANCE AND CLEANING OF A FOLDING PERGOLA

This version of pergolas is fully maintenance-free and therefore, it does not require any special maintenance. We recommend to clean the structure and fabric time to time with clean water without use of any detergents. The guttering and the drain hole in the upper part of the roof should be cleaned from any impurities, such as leaves and other.

We recommend you to visit a showroom before the sliding pergola installation. You may view the system of sliding (folding) pergolas in Prague, Skalice, Žilina and Bratislava.

Advantages of sliding pergolas QUATTRO

  • 40-year manufacturing tradition and above-standard guarantee of 5 years
  • 7 structure colours and 7 fabrics without any surcharge
  • Resistance against strong wind up to 102 km/h 100% waterproof roof PVC fabric from a German manufacturer
  • extruded screen roller blinds in the pergola colour
  • an option of an integrated RGB lighting
  • maximum pergola size of up to 5,500 x 8,000 mm

Estimated price

Product type Aluminium pergola with a sliding roof QUATTRO
Width 4,000 mm
Depth 3,000 mm
Colour RAL 7016
Operated by the SOMFY radio drive
Version Pergola with a drain profile anchored to the house



Price € 8 052

Technical information

  • Colour palette
  • A design product
  • Efficient shading
  • Protection against sun
  • Rain resistance
  • Wind resistance
  • Minimum size (width x depth): 1,500 x 2,500 mm
  • Maximum size (width x depth): 5,500 x 8,000 mm
